MSP430 Timer PWM Tutorial



In this MSP430 timer PWM tutorial the basic workings of the on board timer peripheral will be explained, along with some C code examples which can be downloadable at the end of the tutorial.  Additionally the video below demonstrates the examples ‘A picture paints a thousand words, a video displays a thousand pictures’.

The MSP430G2253 will be used as it has two timers opposed to the MSP430G2231 which only has one timer, this will allow for different examples to be shown.  All the code in the MSP430 timer tutorial is written in Code Composer Studio (CCS) v5.5.  As the tutorial will be using the MSP430G2253 as the test microcontroller, downloading the datasheet for this maybe of use and can be found here.

Before reading further if you are having trouble understanding how the registers work, and how the C code updates the individual register settings?  It would be worth reading my MSP430 Programming Tutorial, Part 1 covers the basics and Part 2 gives clear examples.  You can find them here Part 1 and Part 2.

The MSP430G2253 has two 16 bit timers, Timer0 and Timer1 both are Timer_A variants with three capture/compare registers.  The MSP430 family guide lists two types of 16 bit timer, Timer_A and Timer_B.  For the most part they are very similar except Timer_A has up to three capture/compare registers, were as Timer_B has up to seven.  The MSP430G2253 also has a watchdog timer which can be used detect system malfunctions, but will not be covered in this tutorial. The feature list for Timer_A is shown below:

  • Asynchronous 16 bit timer/counter with four operating modes
  • Selectable configurable clock source
  • Up to three configurable counter/compare registers
  • Configurable as outputs for PWM
  • Asynchronous input and output latching
  • Interrupt vector register for fast decoding of all Timer_A interrupts

Asynchronous 16 Bit Timer

The 16 bit timer increments or decrements a value from the Timer_A register (TAR), every rising edge of the clock pulse.  The TAR value can be read or written with software, and an interrupt can be enabled to generate when it overflows.  If the timer is run asynchronous to the CPU clock, any reading from the TAR should occur while the timer is not running, as the result is likely to be unpredictable.

The four modes of operation for the timer are:

Stop – The timer is stopped

Up – The timer counts from zero to the value of TACCR0

Continuous – The timer counts from zero to 0FFFFh

Up/Down – The timer repeatedly counts from zero up to the value of TACCRO (+1) and then back down to zero.

Configurable Clock Source

The clock source for the timer can be from ACLK, SMCLK or from an external source via TACLK or INCLK (Device specific).  The clock source selected can be then divided by 1, 2, 4 or 8.

Counter Compare Registers

The capture/compare blocks inside Timer_A are all identical.  Any of the TACCRx blocks may be used to capture timer data or generate intervals.  When in capture mode the Capture Compare inputs CCIxA and CCIxB, can be connected to external pins or internal signals. They can be configured to capture on a rising, falling or both edges.  The compare mode is used to generate PWM output signals, or interrupts at specific time intervals.  Each capture/compare block has an output unit, which is used to to generate output signals like PWM.

Interrupt Vector Register

The Timer_A module has two interrupt vectors linked to it: TACCR0 interrupt vector TACCR0 Capture Compare Interrupt Flag (CCIFG) and Timer_A Interrupt Vector Register (TAIV) for all CCIFG flags and Timer_A Interrupt Flag (TAIFG).  The TACCR0 CCIFG has the highest priority of all the interrupts for Timer_A.  The TAIV is used to prioritise and combine the TACCR1 CCIFG, TACCR2 CCIFG and TAIFG flags.

Timer_A Registers

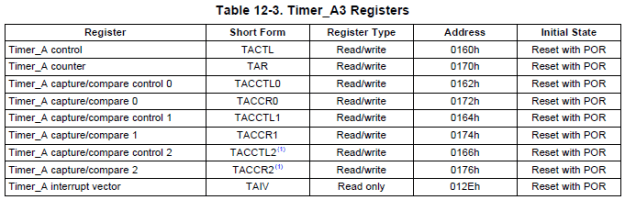

The Timer_A module is configured with software by setting the bits inside the various registers, which alter the timers parameters.  The image below list the various registers associated with the Timer_A module.

MSP430 Timer Tutorial Guide Timer_A Registers

Timer_A Control

This register determines where the clock is sourced from and how the clock is divided either by 1, 2, 4 or 8.  The timers control mode is also set here, whether it’s stopped, counts up, continuous or up/down.  The TAR , clock divider and count direction can also be reset with the TACLR bit being set.  Lastly the Timer_A interrupt enable/disable and interrupt pending flag are also found here.  A typical command for this register looks like this TA0CTL = TASSEL_2 + MC_1; or TA1CTL = TASSEL_2 + MC_1;

Timer_A Counter

The Timer_A registers or TAR holds the count of Timer_A.  A command using this register could look something like this depending on your application TAR = 4500-1;

Timer_A Capture/Compare 0

The Timer_A capture/compare register 0 or TACCR0, is used in two cases.  In compare mode this holds the value for comparison with the timer value in the TAR.  When in capture mode, the value in the TAR is copied into the TACCR0 when a capture is performed.  An example of the register code would be as follows TA0CCR0 = 200-1;.

Timer_A Capture/Compare Control 0

The Timer_A capture/compare control register 0 or TACCTL0, is a 16 bit register used to determine how the TACCR0 is set-up.  The register controls whether the timer module is set to capture or compare.  The trigger edge for the capture mode can be set, as well as where the source originates from, either internal or external.  Asynchronous or synchronous operation can determined, as well as synchronised capture or compare input.  There are various output modes, which are used to determine the operation of PWM signals for example.  Also this register allows interrupts to enabled for the timer module.  An example of the register code would be as follows TA0CCTL0 = OUTMOD_7 + CCIE;.

Timer_A Capture/Compare 1

The Timer_A capture/compare register 1 or TACCR1.  Has the same operation as TACCR0.  An example of the register code would be as follows TA0CCR1 = 200-1;.

Timer_A Capture/Compare Control 1

The Timer_A capture/compare control register 1 or TACCTL1, is a 16 bit register used to determine how the TACCR1 is set-up.  Has the same operation as TACCTL0.  An example of the register code would be as follows TA0CCTL1 = OUTMOD_7;.

Timer_A Capture/Compare 2

The Timer_A capture/compare register 2 or TACCR2.  Has the same operation as TACCR0.  An example of the register code would be as follows TA0CCR2 = 200-1;.

Timer_A Capture/Compare Control 2

The Timer_A capture/compare control register 2 or TACCTL2, is a 16 bit register used to determine how the TACCR2 is set-up.  Has the same operation as TACCTL0.  An example of the register code would be as follows TA0CCTL2 = CCIE;.

Timer_A Interrupt Vector

The Timer_A interrupt vector register or TAIV, is used to prioritise and combine the remaining interrupt flags.  When reading the TAIV it will give the value of the current interrupt, as well as clearing that interrupts flag.



Timer Example 1

This first example demonstrates the use of one timer, which is used to flash the MSP430G2253 Launchpad LED’s on and off.  The code snippet below only shows the timer set-up and the interrupt handler, as these are the most relevant parts.

The code is fairly short and quite simple to walk through, in line 5 we first load the TA0CCR0 with the value 3000.  Line 6 turns the interrupt on for the TA0CCR0 when it overflows.  Line 7 sets the clock source to ACLK (12kHz) and the counter to count-up mode.  So the interrupt is generated every 250mS approximately.  Line 9 sets the MSP430 to low power mode and enables interrupts.  Lines 12 to 22 are the interrupt handler for Timer0_A, this interrupt automatically clears when called.  Inside the interrupt handler, the variable Control is used to ensure the green LED flashes once for every time the red LED flashes four times.  The closing brace marks the end of the main function.

Example 1 Code

The link below contains the zip file with the full example C code, there is a small advert page first via Adfly, which can be skipped and just takes a few seconds, but helps me to pay towards the hosting of the website.

MSP430 Timer Tutorial Timer Example 1

I take great care when writing all the tutorials and articles, ensuring all the code is fully tested to avoid issues for my readers.  All this takes time and a great deal of work, so please support the site by using the Adfly links etc.  If you have found this useful or have any problems implementing, please feel free to leave a comment and I will do my best to help.

Timer Example 2

The second example demonstrates the use of two timers, which are used to output PWM signals on GPIO pins P1.2 and P2.1.  The timer set-up code and also the GPIO set-up code is shown below.  The clock was set to 8MHz for this example.

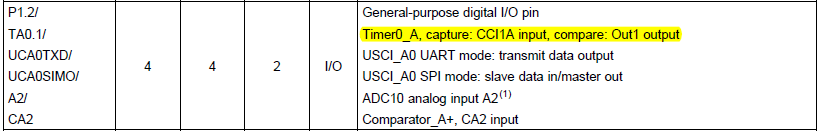

Before walking through the code, the image below is extracted from the MSP430G2253 datasheet, this shows GPIO pin P1.2 and it’s functions.  The line which is highlighted demonstrates P1.2 can be used as an input and output for Timer0_A.

MSP430 Timer Tutorial GPIO Pin Functions

Walking through the code starting with line 5, this sets GPIO pin P1.2 as an output.  Line 6 selects the function for GPIO pin P1.2, and in this case it is used for PWM.  Lines 7 and 8 perform the same operation, except they are for GPIO pin P2.1.  line 11 the TA0CCR0 is loaded with 200, this sets the PWM frequency to 40kHz approximately.  Line 12 sets the output mode to reset/set.  Line 13 sets the count value of TA0CCR1, which determines the PWM duty cycle, in this case 50%. Line 14 sets the clock used by the TA0CTL to SMCLK and the counter to count-up mode.  Lines 17 to 20 set-up Timer1_A in the same way as Timer0_A, except the frequency is set to 8kHz approximately.

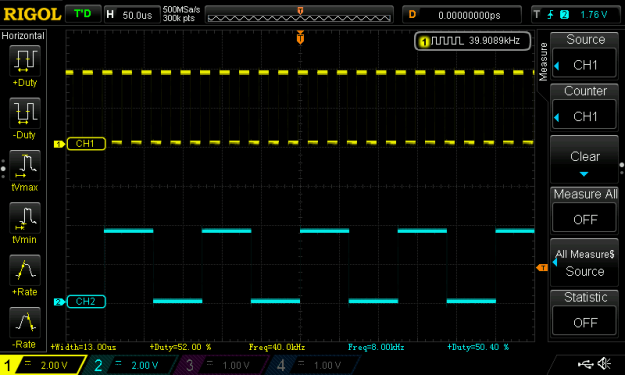

The image below shows a capture from the oscilloscope for this code, GPIO pin P1.2 is shown on channel 1 and P2.1 is shown by channel 2.

MSP430 Timer Tutorial Dual PWM example

Example 2 Code

The link below contains the zip file with the full example C code, there is a small advert page first via Adfly, which can be skipped and just takes a few seconds, but helps me to pay towards the hosting of the website.

MSP430 Timer Tutorial Timer Example 2

I take great care when writing all the tutorials and articles, ensuring all the code is fully tested to avoid issues for my readers.  All this takes time and a great deal of work, so please support the site by using the Adfly links etc.  If you have found this useful or have any problems implementing, please feel free to leave a comment and I will do my best to help.

Timer Example 3

The third example demonstrates the use of two timers, using PWM generated by Timer0_A and a timed interrupt on Timer1_A to alter the duty cycle.  The PWM output is configured to output on GPIO pin P1.6.  As with the previous code examples, only the timer set-up code is shown. The clock was set to 1MHz for this example.

Lines 5 to 8 in this example are almost identical to lines 5 to 8 in the example 2 code.  The main difference is the PWM frequency is set to 1kHz (clock set to 1MHz) and the duty cycle is initially set to 0.1%.  Lines 11 to 13 set-up Timer1_A, this has a count of 4000 so generates an interrupt every 4mS.  Line 15 sets the MSP430 to low power mode and enables interrupts.

Lines 18 to 25 are the interrupt handler for Timer1_A, as with the first example this interrupt automatically clears when called.  Inside the interrupt the value stored in TA0CCR1 is added to the variable IncDec_PWM which is multiplied by 2 every time the interrupt handler is called.  IncDec_PWM is a global variable and assigned the value 1.  This equates to the value in TA0CCR1 being incremented or decremented by 2, therefore the duty cycle changes by 2 or (0.2%) every time the interrupt handler is called.  This equates to a transition time of approximately two seconds from high to low and low to high.  The final if statement inside the interrupt handler reverses the direction of the duty cycle, causing the LED to decrease in brightness until a value greater than 998 is reached, and increase in value when a value less than 2 is reached.

Example 3 Code

The link below contains the zip file with the full example C code, there is a small advert page first via Adfly, which can be skipped and just takes a few seconds, but helps me to pay towards the hosting of the website.

MSP430 Timer Tutorial Timer Example 3

I take great care when writing all the tutorials and articles, ensuring all the code is fully tested to avoid issues for my readers.  All this takes time and a great deal of work, so please support the site by using the Adfly links etc.  If you have found this useful or have any problems implementing, please feel free to leave a comment and I will do my best to help.

There is also one more additional example for the timer, which demonstrates the capture mode.  This is actually part of a another tutorial based around switch debouncing, the timer is used to capture the undesired pulses generated by a noisy switch.  You can find the additional code by browsing to the end of my Switch Debouncing Tutorial Pt/1.
