C2000 Solar MPPT Tutorial 4

C2000 Solar MPPT Tutorial Pt/4



In this fourth and final part of the C2000 Solar MPPT Tutorial, the system set-up and testing will be looked at.  This will involve the overall hardware set-up for testing, ADC calibration, reduction of noise on the ADC sampling, efficiency test and some improvements for future iterations.  The final C2000 solar MPPT tutorial C code is also downloadable at the bottom of the page.

System Testing

Once the hardware was calculated and designed, the PCB was laid out and then printed using the freeware version of EagleCad.  The PCB was then printed on a LPKF milling machine, the finished component side of the PCB can be seen in the image below.

C2000 Solar MPPT Tutorial PCBThe board was given a thorough visual check, it was noted some of the drill holes on the component side were marginally out of alignment.  This is due to a slight misaligned of the milling machine alignment pins, the bottom of the PCB is milled first and then flipped so the component side can be milled.  When the board is flipped the minor misaligned becomes apparent, it is not enough to cause an issue, but I manually make all my own footprints allowing for the small idiosyncrasies and tolerances of the milling machine.

The components used for the design were mainly sourced from the education institution stock, with only the INA138 being ordered in.  This reduced any unwanted lead times and also keeps costs down.  There are down sides to this which were found with the IRFI640G MOSFETs.  The mistake was made of soldering these directly onto the PCB without checking the MOSFETs first, they were sourced from a large bag of perhaps 500 or more IRFI640G, all previously reclaimed from other boards.  Once the board was constructed it was noted the power supply was going straight into over current protection, this was narrowed down to two faulty MOSFETs that were short circuit, between Drain and Source.  A quick on the fly test I used to check the MOSFETs can be seen in the image below.

C2000 Solar MPPT Tutorial MOSFET Testing

System Calibration

Once the board was working, the next step was to test the buck circuits under controlled conditions,  The test involved the C2000 being set-up to supply a fixed PWM output of 50% duty cycle on PWM1, with PWM2 180o out of phase.  A dummy load in the shape of a 100W potentiometer set to 50Ω was connected to the output terminal, with a 20V supply applied to the solar panel input pins.  A multimeter was used to then measure the output DC voltage, which was observed to be 10V, this confirmed the buck circuit was operating correctly, the 20V was adjusted down to approximately 15V and the voltage was observed to half on the output.

After this initial test the ADC values being sampled needed to be calibrated, this would involve measuring the input voltage and current as well as the output voltage and current.  To achieve this to a good accuracy the same test conditions were used and two Hewlett Packard 34401A multimeter’s.  Some constant values were calculated from the signal conditioning circuitry (see the second part of this tutorial here) used to sample the ADC values, these were calculated as follows.

C2000 solar MPPT Tutorial ADC Constant Equations

These values would then need to be adjusted to meet the tolerances of the circuit.  A laptop was also set-up running Code Composer Studio (CCS) and the calculated ADC variables were viewed, and then the constant calculations values altered until the accuracy was satisfactory. The actual ADC constant values used can be seen in the below code snippet

Various test were carried out at this point to see how the ADC calibration and sampling was working, experimenting with sample and hold times, over sampling.  A useful tool is the graphing feature in CCS this allows trends to be observed in variables.  The original set-up used a timer to trigger the ADC sampling, however this generated more noise due to the MOSFET switching, so the PWM was used to trigger the ADC SOC.



The next image shows a screen capture from CCS, with the debug mode in operation.  The MPPT circuit was supplied with 17.5V from a regulated power supply, the load potentiometer was set to 40Ω, a PWM frequency of 25kHz (not 15kHz) with a 50% duty cycle was used in an open loop configuration.

C2000 Solar MPPT Tutorial 25kHz_25SH

What this graphed data shows is a 2 minute sample window (click the image to expand), the top graph is the input current with a variation of 2.4mA, and the bottom graph input volts with a variation of 10mV.  At the top right of the graph the ADC input variable values can also be seen, the two highlighted in yellow just indicates the value has just changed.

Efficiency Test

This basic efficiency calculation test was made by graphing the the input and output power under different power conditions.  The power efficiency fluctuated between 85~93%, with the greatest efficiency being achieved towards mid-range power.  The graphed data can be seen below with the input power at the top and the output power at the bottom.

C2000 solar MPPT Tutorial Power Efficiency Graph

Improvements

This was a prototype design and the first attempt at a solar MPPT, as such there are some improvements that can be made for future iterations.

On the software side, the clock speed for the C2000 could be reduced as there is plenty of idle time, the processor could also be placed into a low power mode between timer interrupts, this would bring an overall reduction in power dissipation.  Additionally a battery charging statement machine could be easily added, with a further form of regulation to switch between full charge and float charge.  If the circuit did not require an interleaved design, the code structure and algorithm could be easily ported across to a lower power and less expensive microcontroller like an MSP430G series.

On the hardware, the MOSFETs are key components that could be changed making the system more efficient.  Greater use of surface mount devices would reduce the circuit trace lengths and noise.  An improved ground plan design would also help reduce noise.  The trace lengths for each circuit phase ideally need to be identical, this will help to balance the phases.  It is possible to sample the current in each phase, then use software to adjust the duty cycle to correct any imbalances, however this increases the overall systems complexity particularly the software.

C2000 Solar MPPT Tutorial C Code Download

The link below contains the zip file with the complete C code, there is a small advert page first via Adfly, which can be skipped and just takes a few seconds, but helps me to pay towards the hosting of the website.

C2000 Solar MPPT Tutorial Full C Code

I take great care when writing all the tutorials and articles, ensuring all the code is fully tested to avoid issues for my readers.  All this takes time and a great deal of work, so please support the site by using the Adfly links etc.  If you have found this useful or have any problems implementing, please feel free to leave a comment and I will do my best to help.

C2000 Solar MPPT tutorial

C2000 Solar MPPT tutorial Pt/3



In this third part of the C2000 Solar MPPT Tutorial, the software will be looked at in greater detail.  This will entail a look at the Perturb & Observe algorithm, ADC code and timing code to ensure everything operates in a controlled manner.

The software is based around a Perturb and Observe (P&O) algorithm, the P&O algorithm falls under the category of a hill climbing algorithm.  Hill climbing algorithms are named so due to the algorithm taking steps over sampled data to reach a desired value, in the case of the P&O this takes steps towards the MPP by increasing or decreasing the duty cycle.  There are other hill climbing algorithms such as dP/dV Feedback Control and Incremental Conductance, I intend to revisit these and write code at a later date, but for now will focus on the P&O.  Some further information on MPPT algorithms can also be found here.

Perturb & Observe Algorithm

The P&O algorithm is a relatively simple algorithm, as such it has a few drawbacks:

  • The algorithm can be confused and track in the wrong direction, this can occur under fast changing irradiance conditions, the severity of this confusion depends on the P&O setup i.e. step size and update frequency.
  • The algorithm oscillates around the set point showing characteristics of an on/off controller.  More on this can be found on a previous tutorial I wrote regarding PID control, which can be found here.

The flowchart below shows the P&O algorithm used for this project

C2000 Solar MPPT Tutorial Perturb and Observe Algorithm Flow Chart

As can be seen from the flowchart the algorithm is fairly easy to follow, turning this into C code is also relatively easy, the final C code P&O algorithm can be seen below inside the function Adj_PWM().

So lets now run through the code briefly starting with line 3, this basically assigns the value in the counter compare A register to variable PWM_Temp.  PWM_Temp could simply be assigned to a temporary global variable, but I chose to get it straight from the register in this case.  Lines 5 to 24 form the main body of the algorithm, looking back at the flowchart the first two steps “Sample” and “Calculate” are carried out elsewhere in the ADC section of the code.  Lines 5 to 14 are illustrated by the right hand branch of the flowchart and lines 15 to 24 are illustrated by the left hand branch of the flowchart.

You have some simple if and else statements that determine which direction the algorithm takes, which is dependant on the sampled ADC data.  The result of these steps will either increase or decrease the PWM duty cycle, this increase or decrease determines the step size and in this case that value is 2.

The next block of code from lines 26 to 31 are used to prevent the duty cycle from reaching too large, and too small a value.  This was used during tuning, but also serves to provide some boundaries for the PWM, for example the duty cycle for the half bridge MOSFET drivers cannot exceed 99%, or the boost function will not operate correctly.

Lines 32 and 33 are used to update the duty cycle to the counter compare A registers for PWM1 and PWM2, both are the same duty cycle but PWM2 is 180o out of phase with PWM1.  Line 35 then assign the latest calculated solar panel voltage IP_Volt to the variable Old_IP_Volt and line 36 assign the latest calculated solar panel power New_PW_In to the variable Old_PW_In, both these variables are then used when the Adj_PWM() function is called again.

In order to help visualise the two PWM signals, the below image shows an oscilloscope trace with PWM1 in yellow and PWM2 in blue, both are set to 50% duty cycle and PWM2 is out of phase by 180o with PWM1.

C2000 Solar MPPT Tutorial 50% Duty 180 Phase

ADC Code

The next piece of code to be looked at is the ADC, I am not going to show the set-up code for the ADC or the PWM that triggers the ADC SOC, but will just show the code relating to the sampling and calculation.  However I intend to write a tutorial on each peripheral inside the C2000 with code examples, when time allows.  The ADC sampling is triggered by the PWM on every first event, therefore the sampling rate is 15ksps.  The final ADC sampling code can be seen below inside the function Data_Update()

So starting with lines 3 to 6 these are the local variables used for the function, the two floats are used to store the ADC values and the two integers are used to determine how many samples in the for loop.  The float in line 4 is a float array with four arrays, now the same result could be achieved with four separate floats.  I have left it as a float array for now, but if four floats were used the code should be optimised, by using 64 samples the following division of 128 (lines 23 to 26) could be substituted with a right bit wise shift of 7.

Lines 8 to 21 consist of the for loop, this uses the integer i as a counter and numberOfsamples as the count value.  Inside the for loop shown on line 10 this statement will wait until the next PWM trigger is received, which then initiates the ADC SOC channel number 0, once ADC channel 0 is finished it initiates channel 1 and so on and so forth.  The samples are saved in each of the channel numbers registers, then using the += addition assignment operator are added to the sum_of_ADC_samples_Array[n].  So an accumulated value is built up of the total samples every time the for loop is executed.  In addition there are 8 ADC channels being sampled, channel 0 to 7, but only 4 samples are accumulated so ADC channel 0 and 4 are added to sum_of_ADC_samples_Array[0] and channel 1 and 5 are added to sum_of_ADC_samples_Array[1] and so on and so forth.  When the ADC channel sampling sequence has finished, the trigger flag for the SOC sequence is cleared (line 20) and the loop waits for the next trigger event from the PWM.  Once i reaches 64 the loop is exited, each of the of the sum_of_ADC_samples_Array[n] now have 128 accumulated sample values in.

Lines 23 to 26 divide the sum_of_ADC_samples_Array[n] by 128 and assign the value to ADC_An floats.  Lines 28 to 31 convert the new floats to real world voltages read on the GPIO. Lines 33 to 36 then use constant values calculated from the electronic component values in the circuitry, to convert the floats to actual voltages and currents sampled in the circuit.  Lines 38 to 40 simply convert the input voltage and current to an input power and the output voltage and current to an output power.



Timing Code

The timing code is quite critical as it determines the update frequency of the MPPT, it must also ensure the code does not overrun and cause unpredictable behaviour.  The internal timer module was used, Timer 0 was set-up to trigger an interrupt every 100mS or 10Hz. The interrupt code is shown below.

When the interrupt is called an integer called SysTick is set to one, then the interrupt flag is cleared allowing the interrupt request to be executed and exited quickly.

Inside the main function there is a continuous while loop, the following code is run inside this loop.

Every time the interrupt sets the integer called SysTick to one, it allows the functions Data_Update() and Adj_PWM() to be executed, once these functions have completed SysTick is set to zero.  There are some additional lines of code on line 5 and line 10, these are used for testing and allowing the code execution time to be displayed on an oscilloscope.  The code on line 5 switches GPIO pin 19 high, then the code on line 10 switches GPIO pin 19 back to low, so a square wave pulse is produced and the pulse width gives an indication of the code execution time of the functions Data_Update() and Adj_PWM(). The following images show captures from an oscilloscope.

C2000 solar MPPT PWM and MPPT update frequency

This first image shows the 15kHz PWM being displayed on channel 1, the individual wave pulses are not visible as the time base is set to display channel 2.  The blue trace shown on channel 2 can be seen to have a frequency of 10Hz, with a pulse width of 4.4mS, so the functions Data_Update() and Adj_PWM() take 4.4mS to execute.  Putting this into context there should be 128 ADC samples captured, taken from 64 triggers of the PWM signal, therefore 64*66.67uS (one 15kHz cycle) = 4.27mS.  A single ADC sample and conversion takes around 650nS, if we multiply that by the 8 samples, a conversion is being completed every 8*650nS = 5.2uS (it will be faster than this due to ADC pipelining effects).  It can be clearly seen that there is plenty of room for more oversampling if required, as the 5.2uS sample and conversion time easily fits inside the 66.67uS window of the PWM trigger.  There is also a small amount of code overhead being added artificially by toggling GPIO pin 19, which is not significant but something to be aware of.

C2000 solar MPPT PWM and MPPT update frequency zoomed

The second image has a smaller time base setting (100uS) effectively zooming in, which allows the individual pulses from the 15kHz PWM to be visible.  So going back to the step size of 2 shown in the Adj_PWM() function, this can be put into context when the maximum duty cycle value as a variable, for 100% duty cycle equals 1000.  Therefore with a PWM update frequency of 10Hz and a maximum step size of 2, this equates to a maximum duty cycle change of 2% per second.

I captured some video which shows 3 variables being graphed in Code Composer Studio, these variables are PV Power, PV Volts and the Duty Cycle.  The video also demonstrates the MPPT in action under simulated fast changing cloud conditions, as well as some natural cloud.

There will be one final part to this series of tutorials this will cover some of the set-up and testing, and will also include a link to the full C code for the project.

I take great care when writing all the tutorials and articles, ensuring all the code is fully tested to avoid issues for my readers.  All this takes time and a great deal of work, so please support the site by using the Adfly links etc.  If you have found this useful or have any problems implementing, please feel free to leave a comment and I will do my best to help.

C2000 Solar MPPT Tutorial 3

C2000 Solar MPPT tutorial Pt/2



In this second part of the C2000 Solar MPPT Tutorial, the hardware and circuit design will be looked at in greater depth.  The schematic for the system is posted again below for reference, which can be enlarged by simply clicking on it.

C2000 Solar MPPT Tutorial PWM and MPPT update frequency zoomed hardware schematic

Buck Converter Design

The first step was to design the buck circuit, this is determined by the output parameters of the system and it’s load.  For the first prototype based around the panel purchased for testing, it was decided to aim for a 12V output, therefore a maximum current of 750mA (assuming 10% losses).

When calculating a buck circuit the frequency of operation, inductor size and output capacitor size are important, as they determine the current and voltage ripple size.  It is desirable to have as smaller current and voltage ripple as possible.  A large current ripple can cause additional losses in a system, as there maybe times when the peak current is greater than the load requirements.  A large voltage ripple is obviously not desirable, good quality regulated power supplies have very low voltage ripples.

A general rule is the higher the frequency the smaller the inductor and output capacitor size, and a smaller inductor and capacitor size generally lowers the system cost.  However higher PWM frequencies decrease the system efficiency due to switching losses in the mosfets, so a trade off has to be reached which meets the design constraints of the end system.

For this system a PWM frequency of 15kHz was chosen, based on this, the solar panel and other design parameters for the buck circuit calculations can be performed.  First we can determine the system duty cycle at MPP, note the duty cycle will change to track the MPP with differing irradiance.  A figure of 90% was used for the buck converter efficiency,a typically buck converter efficiency is 90% or greater.

C2000 Solar MPPT Tutorial duty cycle equation

Next an ideal current ripple can be determined, it is important to note that the below formulae used only determines a single phase current ripple.

C2000 Solar MPPT Tutorial current ripple equation

ΔIL is the inductor ripple current, and in this case a 30% figure was used for the multiplier. Now that the current ripple is know the inductor size can be calculated with the following equation.

C2000 Solar MPPT Tutorial inductor size equation

Using two 1.34mH inductors on each phase will ensure the inductor ripple current is effectively halved, knowing this an inductor ripple current of 90mA can be used to calculate the minimum output capacitor size.

C2000 Solar MPPT Tutorial output capacitor size equation

Δvout is the desired ripple voltage.  The constant 8 is determined by the simplification of an equation, which can be found in various sources, one such source is an Application Note by On-Semiconductor AND9135/D.

There are two other factors for the inductor and capacitor that are important to consider: the inductor peak current and the capacitors Equivalent Series Resistance (ESR).  The inductor for this project will be hand wound using a toroidal core, which will be covered shortly.  The capacitors ESR can affect the reliability of the capacitor.  A capacitor will dissipate power as heat depending on it’s ESR, so a low ESR is desirable as excessive heating will shorten the life of a capacitor and be less efficient.  For this early prototype, cheap off the shelf capacitors were used as their reliability over time was not a concern at this stage.

The inductors were constructed using a T68-26A toroidal core, this core has a nominal inductance or Al value of 58nH.  The following equation was used to determine how many turns of wire the core would need.

C2000 Solar MPPT Tutorial inductor turns ratio equation

A 0.3mm outside diameter enamelled cable was chosen, this has a maximum current rating of 1.4A.  Then a very useful website found here was used, this allows you to calculate the total length of cable required based on the toroidal core dimensions and cable diameter. Using a vice the cores were both wound and then measured using a LCR meter and measured at 1.3mH, an image below shows the hand winding process used.

C2000 solar MPPT toroidal inductor core winding

MOSFET Losses

For the prototype system Vishay IRFI640G MOSFETs were used, these are not the most efficient having a high RDSON value (180mΩ), but they were stocked at the time of writing.

The power losses from the High Side and Low Side MOSFETs are a combination of conduction and AC switching losses.  The conduction losses are a result of I²R losses inside the MOSFET when it is fully on, and the switching losses are the result of the MOSFET transitions from its on and off states.  Some example calculations will now be shown using data from the IRFI640G datasheet and various sources, on a synchronous MOSFET buck circuit efficiency.

C2000 Solar MPPT Tutorial switching losses legend

The first equation is for the High Side MOSFET and is based on the Vmp of the solar panel at maximum output current running through each interleaved phase.

C2000 Solar MPPT Tutorial High Side losses equation

The next equation is for the Low Side MOSFET using the same current figure.

C2000 Solar MPPT Tutorial Low Side losses equationThe results from these two equations can be combined to work out the overall efficiency, the losses will also be multiplied by a factor of 2 as this is for a two phase interleaved circuit.

C2000 Solar MPPT Tutorial 15kHz Power losses equation

Now if we increase the PWM frequency to 150kHz, the circuit losses will also be shown to increase.

C2000 Solar MPPT Tutorial 150kHz Power losses equation

The switching losses in this next example will be shown to increase with increasing current, the next example uses a 15kHz switching frequency but with 2A, increasing the overall power to 24W.

C2000 Solar MPPT Tutorial 15kHz at 2A Power losses equation

A MOSFET with a lower RDS(ON) will have lower conduction losses, but it will typically have a higher QG (Gate Charge) resulting in higher switching losses.  Therefore a careful balance between these characteristics should be found to maximise the circuits efficiency.  Taking into account the nominal parameters of the system, such as input voltage, output current, switching frequency and duty cycle, will allow the best efficiency to be achieved.  This will often involve using MOSFETs with different characteristics for the High and Low Side drivers.



MOSFET Driver Circuit

The Half-Bridge (H-Bridge) driver is an IC designed specifically for driving MOSFETs. The IC takes the incoming PWM signal, and then drives two outputs for a High and a Low Side MOSFET.  This type of H-bridge is often used to to drive motors, but has other applications such as the following example.  The IC used is a IRS2003 half bridge driver made by International Rectifier, the image below shows an example circuit from the datasheet.

C2000 Solar MPPT Tutorial IRS2003 example circuit

The IRS2003 allows 2 PWM signals to be connected to HIN and LINNot this gives the user the opportunity to fine tune the dead-band switching of the MOSFETs.  The capacitor wired between VB and VS along with the diode form a charge pump, this allows the drive voltage to the MOSFETs to be almost doubled.  HIN and LINNot in this case are wired together and supplied with the same PWM signal, the IRS2003 has internal timing to ensure the High Side MOSFET, and the Low Side MOSFET are never on at the same time.  The capacitor between VB and VS needs to be sized to ensure it can drive enough current to the gate of the chosen MOSFET, over coming the gate capacitance.

ADC Feedback Circuits

There are four ADC ports used on this project, two sampling voltage and two sampling current.  The hardware employed to sample the voltage signals will be covered first, followed by the current sampling circuit.  But first a brief introduction to the TMS320F28027 ADC.

The ADC measures voltage from 0V to 3.3V, with a 12bit resolution.  It is important to not exceed the input voltage of the microcontrollers GPIO pins, the TMS320F28027 has a maximum input voltage of 3.63V.  Using this information the step resolution for the ADC can be calculated.

C2000 Solar MPPT Tutorial ADC resolution equation

The input on the ADC also has a small internal capacitance and resistance, this is used for Sample and Hold acquisition depending on the characteristics of the circuit being sampled. The internal ADC circuit taken from the TMS320x2802x datasheet is shown below.

C2000 Solar MPPT Tutorial internal ADC S-H

To ensure the readings being sampled are as accurate as possible, the source resistance or RS shown in the above image ideally needs to be as small as possible.  This will be achieved by placing an opamp configured as a unity gain buffer in all the ADC sample circuits.  The unity gain buffer will ensure a high input impedance, therefore reducing loading effects on the sampled circuitry to a minimum, as well as offering a very low output impedance to the C2000 internal ADC circuit.  Rail to rail opamps were used and supplied with 3.3V, this ensured the voltage passed to the ADC would not exceed this, thus ensuring the system has ADC protection built in.

The voltage sampling circuits consist of a simple potential divider, the maximum voltage the solar panel can produce is 21.6V when open circuit.

C2000 Solar MPPT Tutorial voltage potential divider equation

The same resistor and opamp configuration is used for the input and output voltage measurement.  A more complex opamp circuit could have been used with offset, to fully exploit the range of the ADC, however this would provide more than enough accuracy for the prototype.

The current sampling circuit involved a slightly more complex approach.  The circuit would revolve around a Texas Instruments INA138 High Side Measurement current shunt monitor. The INA138 is basically a differential amplifier housed inside a small package, with a wide operating voltage.  The INA138 would be supplied with 12V, this then allows for a greater range to be measured around the 0V-3.3V range and was also the second supply voltage available for this circuit.  A typical configuration taken from the datasheet is shown in the image below.

C2000 Solar MPPT Tutorial INA138 typical circuit

There are differences in input and output current so two formulas would be needed to ensure the range was correct.  The shunt resistors comprised of two 1Ω (1%) resistors in parallel, so the combined value becomes 0.5Ω.  The parallel resistors were measured and the actual value was approximately 0.47Ω.  A quick calculation to check these could withstand the power loads was made.

C2000 Solar MPPT Tutorial shunt resistor power equation

This was not the best long term solution, but within tolerance for the 1% resistors in parallel.

The shunt resistor is connected directly across the internal differential amplifiers inputs. The calculations for the INA138 are fairly simple, the gain resistor soldered externally determines the overall gain of the device.  The datasheet for the INA138 states that the device has a gain of 1 with a 5kΩ resistor, gain of 2 with a 10kΩ, gain of 5 with a 25kΩ and so on and so forth. The input and output current gain resistors were calculated as follows.

C2000 Solar MPPT Tutorial INA138 gain resistors equation

These values would ensure the output from both the current feedback circuits falls in-line with the ADC input.

Schematic Design and Layout

Certain aspects of the design were simulated in OrCad 16.6 first, to back-up the theory with simulation.  Then the design was taking over to EagleCad to enable faster prototyping.  Component symbols and foot prints where designed for all the non standard parts, ensuring these were all compatible with the LPKF milling machine used.  Once the schematic design was complete and the Electrical Rule Check (ERC) and Design Rule Check (DRC) were satisfactory, a schematic design was made for a two layer board.  The layout kept the PWM and digital switching side and analogue circuitry away from each other to avoid unnecessary noise.  The below image shows the final PCB prototype layout.

C2000 Solar MPPT Tutorial PCB layout

The next part of this tutorial will go more in-depth into the C2000 software and Perturb and Observe algorithm, also including a downloadable version of the C code.

I take great care when writing all the tutorials and articles, ensuring all the code is fully tested to avoid issues for my readers.  All this takes time and a great deal of work, so please support the site by using the Adfly links etc.  If you have found this useful or have any problems implementing, please feel free to leave a comment and I will do my best to help.

C2000 Solar MPPT Tutorial C code Perturb and Observe algorithm

C2000 Solar MPPT tutorial Pt/1



This series of four posts will cover a project build for a C2000 Solar MPPT Tutorial.  The Maximum Power Point Tracker (MPPT) circuit is based around an interleaved synchronous buck circuit topology.  The microcontroller used is the Texas Instruments (TI) C2000 family, the C2000 Launchpad is used which has a TMS320F28027 chip on-board.  Considerable research was carried out on this project, as there was no prior knowledge of the C2000, all the relevant peripherals were tested separately and then brought together and tweaked for the final code.  TI provides all the documentation required, which can be found here and for this tutorial the ADC, ePWM and the F2802x Peripheral Driver Library Users’ Guide were referenced.

The C2000 solar MPPT tutorial can also be used as a guide if designing a circuit for other microcontrollers such as Arduino, as the electronic principles and some of the code is transferable to any platform.

The image below shows the final prototype MPPT PCB with the C2000 Launchpad secured on top via the header connections.

C2000 Solar MPPT Tutorial final prototype PCB

The video below shows the system set-up, allowing the Perturb and Observe algorithm to be tuned.  There is also a second video demonstrating the algorithm tracking the maximum power point of the solar panel, this can be found on my YouTube account and will be embedded in the final tutorial.

In this part a basic overview of the hardware design will be covered, further tutorial parts will cover the following areas in greater detail:

  • Buck circuit calculation, a look at MOSFET efficiency, current and voltage sampling and circuit design and layout
  • Software approach including phase shifted PWM, ADC sampling and the Perturb and Observe algorithm
  • Final set-up, testing and tuning

Maximum Power Point Tracking

Maximum power point tracking is employed, to ensure the maximum power is extracted from a solar panel.  In order to understand this further we first need to look at the power curve characteristics of a solar panel, the image below shows a Suntech STP230-20Wd (230W panel) power curve.

C2000 Solar MPPT Tutorial solar panel power curve

The maximum power point (MPP) of a solar panel lies at the knee of the current and voltage curve.  Reading the datasheet on the Suntech panel tells us that Vmp (voltage at maximum power point) is 29.8V and Imp (current at maximum power point) is 7.72A, locating the intersection point of these two values, it can be seen that the MPP is at the knee of the curve. The graph also illustrates that the voltage variation is much less compared to the current only with differing irradiance, however the current varies linearly with solar intensity.  Temperature also affects the power output from a panel, current increases slightly with an increase in temperature, whereas voltage decreases with an increase in temperature.  As the voltage is affected by temperature more than the current, voltage calculations need to be considered when large string arrays are used, to ensure the system meets the requirements of the inverter used.

The panel has an internal resistance which changes dynamically with differing irradiance levels.  So if a static load is connected directly to a panel and its resistance is higher or lower than the panels internal resistance at MPP, then the power drawn from the panel will be less than the maximum available.  Taking a simple example under bright midday sun, say we connected the Suntech STP230-20Wd directly to a 12V lead acid battery, the panel voltage would be dragged down near to the load voltage of the battery as the batteries resistance is lower than the panels.  With a quick calculation the panel is now outputting 12V and 7.72A, therefore 93W, this equates to a loss of 137W or 60%. Obviously this is an extreme example, but even using a 24V battery would still equate to a 20% loss, which is far from efficient.

This is where MPPT comes into play.  MPPT circuits can be based on various switch mode power supply (SMPS) topologies, they generally have a fixed frequency but varying duty cycle.  The duty cycle is controlled via an algorithm so as to track the changing MPP, the output power is determined by the efficiency of the circuit and usually closely matches the incoming power within 3-10% (typical losses).  The output voltage and current will not necessarily be fixed under changing irradiance conditions depending on the system employed, so further circuitry maybe required or a more elaborate algorithm.

System Overview

The image below shows an overview of the final system

C2000 Solar MPPT Tutorial Prototype System Diagram

The solar panel in the diagram will be represented in real life by a 10W panel purchased from Ebay, this has a Vmp of 17.2V and an Imp of 580mA.  Four ADC inputs and 2 PWM outputs will be used on the C2000.  The input voltage and current and output voltage and current will both be monitored, so the input and output power can be determined.  A pair of half bridge driver integrated circuits (IC) will be used to drive the four N-Channel MOSFETs. There is also an auxiliary supply, this was used to power a 12V linear regulator which powered the half bridge drivers.  The 12V regulator could also be powered directly from the panel, which was used in testing under bright sun conditions.



The chosen SMPS topology will be based on a synchronous buck converter circuit, there will be two of these in parallel forming an interleaved design.  Using an interleaved approach is over kill for the 10W panel prototype, but it gives the system scalability for future iterations.  The synchronous buck design was chosen as it offers a higher efficiency, these design choices will become clear as the tutorial progresses.

Interleaved Synchronous Buck Converter

The buck converter circuit will be over viewed as this forms a large part of the system design, this will naturally lead into the advantages of the synchronous and interleaved design chosen.  A boost circuit could quite easily be implemented in place of buck design, but in this case the target output voltage was 12V.

A buck converter is basically a small DC to DC converter.  The main principle at work in a buck converter, is the tendency for an inductor to resist changes in current.  A buck converter output voltage will always be lower or the same as the input voltage.  A simplified schematic of a buck converter can be seen in the below image.

C2000 Solar MPPT Tutorial buck converter circuit

A buck converter relies on a switch to change or reduce the current flowing through the inductor, the switch usually takes the form of a MOSFET (Q).

  1. When the MOSFETs gate is saturated effectively closing the switch, current flows through the inductor (L) in a clockwise direction into the load (R) and also charging the output capacitor (C).  At this point the voltage on the cathode of the diode is positive, therefore the diode (D) is blocking any flow of current and is said to be reverse biased.  The Instantaneous current flow into the load from Vin is slow, as energy is stored in the inductor as it’s magnetic field increases.  So during the on phase of the MOSFET, energy is loaded into the inductor.
  2. When the MOSFET is switched off, the voltage across the inductor is reversed.  The inductors magnetic field begins to collapse, this collapse releases the stored energy allowing current to flow from the inductor into the load.  The diode now has a negative voltage on the cathode so becomes forward biased.  Therefore the inductors discharge current flows in a clockwise direction through the load and back through the diode. Once the inductors energy has fallen below a certain threshold, the load voltage falls and the capacitor becomes the main source of current, ensuring the load is still supplied until the next switching cycle begins.  To ensure Continuous Conduction Mode (CCM) the inductor must not be fully discharged before the MOSFET is switch on again, and the cycle repeats.

Now that the basic concept of a buck converter has been explained the synchronous design can be covered.  The synchronous design simply replaces the diode with a second MOSFET, this eliminates the losses incurred by the forward voltage drop across the diode, thus making the circuit more efficient.  This is slightly more complex to implement, as the second mosfet switching needs to be carefully timed with the switching of the first mosfet.  It is essential to ensure that both are never on at the same time, or the current will have a direct path to ground, effectively causing a short circuit.  The MOSFET switching is effectively 180 degrees out of phase, with a short delay period between each transition referred to as a Dead-Band.  A dead-band is usually a common feature of most half bridge drivers, the C2000 also allows for the dead-band to be programmed in and tuned, so in reality with modern microcontrollers this is quite simple to implement.

The interleaved design simply takes two synchronous buck circuits and places them in parallel, the main components MOSFETs and inductor are individual to each circuit, but they share a common input and output as well as the same input and output capacitors.  Using an interleaved design reduces the current ripple by half, as each interleaved phase shares the total current.  The shared current allows smaller inductors and capacitors to be used, which can also reduce system size and cost.  Additionally this systems PWM frequency was chosen to be 15kHz as it reduces the switching losses in the MOSFETs, but increases the current ripple and also the inductor size.  By using the interleaved approach it then helps to negate these factors.  These trade-offs will be covered in more detail in the hardware section of this tutorial, where MOSFET losses will be covered.

10W Solar Panel

As mentioned previously the solar panel was purchased from Ebay for around £20.  It’s a polycrystalline panel, which is encased in an aluminium frame and comes with 2 large croc clip leads and a small diode box.  The panel seems pretty good quality and appears to be weather proofed, the diode box is not sealed very well but as it sits under the panel I don’t believe there would be any issues.  Have enclosed 2 shots of the panel, and I can probably dig out the links to the company if anyone is interested.

C2000 Solar MPPT Tutorial 10W panel front

C2000 Solar MPPT Tutorial 10W panel back

System Schematic

C2000 Solar MPPT Tutorial hardware schematic

The next part of this tutorial will go more in-depth into the circuit calculations and schematic design.

I take great care when writing all the tutorials and articles, ensuring all the code is fully tested to avoid issues for my readers.  All this takes time and a great deal of work, so please support the site by using the Adfly links etc.  If you have found this useful or have any problems implementing, please feel free to leave a comment and I will do my best to help.

PID tutorial C code example using a Stellaris LM3S6965

PID Tutorial C code Example Pt/2

In this PID tutorial C code example Pt/2, the basic concept of a Boost PID controller will be explored.  All the PID controller C code is stepped through, as well as some basic concepts for testing and tuning the controller.  The final C code example can be downloaded via the link at the end of the article.

Hardware Overview

The image below shows a rough blocked out diagram of the boost circuit and feedback loop.

PID Tutorial C code Example using a Stellaris LM3S6965

As can be seen it’s a fairly simple design, with the output voltage being monitored and fed back to the LM3S6965.

A schematic for the boost converter can be seen below, this circuit was originally made to test a variable voltage boost converter.  The original design would use a 5V input which would then be boosted to either 9V, 12V or 15V, this was controlled via a state machine running on the Stellaris LM3S6965.

PID Tutorial C code Example using a Stellaris LM3S6965

The drive circuit for the mosfet uses 2 transistors in a totem pole configuration, and a 3rd transistor is to ensure a small current is sourced from the LM3S6965.  The main boost circuit itself consists of L1, Q1, D1 and C3.  The sampled output voltage via the potential divider is first passed through an operational amplifier U1A, configured as a non inverting amplifier which provides a gain of 2.2.  The operational amplifier U1B acts as a unity gain buffer, it’s input is connected to 3 resistors R7, R8 and R9.  These 3 resistors provide the offset voltage of 770mV and U1B ensures there is a high impedance input.  The output of U1B feeds the offset voltage to R4 and then to the negative input on U1A (effectively offsetting ground).  The boost converter was originally set-up to measure voltages between 4V and 19V.  So the operational amplifier arrangement with offset, ensures the sampled voltage range uses almost the full range of the ADC.  For the PID testing the output voltage will be regulated to 9V, which is equal to 353 on the ADC which is also the set point value.

Software

The software used was written after reading various sources on PID.  It has been designed so it is easy to understand, as it uses local and global variables.  A more efficient way would be to use a typedef structure or typedef struct in C.

So firstly we have our constants and global variables.

In the first part of this tutorial the proportional (Kp), integral (Ki) and derivative (Kd) constant values were mentioned.  These are the values which provide the tuning for the PID control system.  The next constant is the set point, this was observed as the read ADC value, when 9V was present on the output.  The 9V was measured and adjusted using a multimeter with a fixed load on the output, the duty cycle had a fixed value which was then increased until 9 volts was reached.  The first 2 global variables are used to store the accumulated and historic error values required for integration and differentiation.  The global variable PWM_Temp is initially given a value, then this is used to store the old duty cycle value, which is then used in the new duty cycle calculation.

The next set of variables are all local to the PID function called PWM_Duty_Change(), all the code that follows will be inside this function, until the closing brace of the function is stated and mentioned.  Additionally the entire code which was used on the LM3S6965 can be downloaded (bottom of the page), so it can be seen how and when the function was called.

The first 2 local variables are called iMax and iMin, these are used to prevent integral windup.  More will explained on integral windup further in the tutorial, but for now we will just run through the variables.  The next 4 variables have already briefly been touched upon in part 1 of this tutorial, these are Err_Value, P_Term, I_Term and D_Term.  Then we are left with new_ADC_value which is simply the latest sampled value form the ADC, and finally PWM_Duty which will be the new PWM duty cycle value passed to the timer module.

The read ADC code does not need much explanation, other than a function was created to read the ADC and return the value as an integer.  If you are using this code on another microcontroller, you simply need to construct an ADC read function, then insert instead of the read_ADC().

Going back to part 1 of this tutorial it was shown that the error value can be obtained, by simply taking the newest error value away from the set point, that’s all this line performs.

To obtain the proportional term the Kp constant is multiplied by the error value.

The accumulated error value is used in integration to calculate the average error, so first the current error value must be added to the accumulated value, and that’s what this line performs.

The if and else if statements are used to cap the accumulated integral term, by simply setting upper and lower thresholds.

The integral term is then calculated by multiplying the Ki constant with the accumulated integral value.

The first line of this code snippet calculates the derivative term.  To understand how the code works the second line needs to be run through quickly, this basically assigns the newest ADC value to the d_temp global variable.  So the d_Temp variable effectively stores the historic error value, therefore allowing the derivative to be calculated.  Now looking at the first line again, the newest ADC value is taken away from the historic value, the difference between the 2 would allow the rate of change to be calculated (assuming the time between the readings is a known quantity). Then this value is multiplied by the derivative constant and assigned to the derivative term.

Now that we have all the PID terms calculated, they can be used to change the PWM duty cycle.  This next piece of code adds all the PID terms together, then they are subtracted from the PWM_Temp variable (PWM_Temp usage is shown shortly as it comes towards the end of the function).  This value is then assigned to the PWM_Duty variable.  The way the PID terms are used here is specific to this program, firstly the sum of the PID terms is subtracted, this is due to the final electronic circuit used.  What’s important here is the PID terms are summed, then they need to be used in such away as to construct a valid PWM duty cycle or other chosen control method.

The if and else if statements are used to prevent the duty cycle from going too high or too low, in this case this simply prevents the output voltage from going too high or too low.  If say you were using a half bridge driver integrated circuit, these usually state a maximum duty cycle of say 99%, if this is exceeded the voltage doubler cannot function correctly, so having limits can be a good protection system.

This line is again limited to this specific application, it simply calls the function adjust_PWM(), which has the new PID calculated duty cycle value, as a parameter.

The final statement in the function before the closing brace, assigns the current PWM duty cycle value to the PWM_Temp global variable.

Integral windup can occur if the integral term accumulates a significant error, during the rise time to the set point.  This would cause the output to overshoot the set point, with potentially disastrous results, it can also cause additional lag in the system.  The integral windup prevention used in this example, places a cap on the maximum and minimum value the integrated error can be.  This effectively sets a safe working value and is considered good working practice in any PID system.  The values used for integral windup as with the PID constant gain values are specific to this system, these would need to be determined and tuned to your system.

Step Response

The intention was to also explore the well documented Ziegler-Nichols approach, however time constraints for the project did not allow this method to be fully explored.  Some basic concepts of how to carry out a step response test will be shown, as I am sure it will prove useful.

The systems step response shows how the system responds to a sudden change, electronic circuits switch quickly, so an oscilloscope was the best piece of equipment for the job.  The boost converter was set up with a fixed load, a fixed PWM duty cycle and no feedback , therefore in an open loop configuration.  Then some additional test code was added, initiating these 2 extra functions when a button was pressed on the LM3S6965 development board :

  1. A free GPIO pin would be taken from low to high
  2. The PWM duty cycle would decrease by 10% effectively increasing the output voltage

The free GPIO pin would be connected to channel 2 on the oscilloscope, and in this way can be used as a trigger to start a capture event.  Channel 1 on the oscilloscope would be connected to the output of the boost converter, thereby capturing the step response as the output voltage rises.  The image below is a photograph of the captured step response on the oscilloscope.

PID Tutorial C code Example using a Stellaris LM3S6965

The GPIO pin was polled before the PWM duty cycle was updated, however this happens so quickly, it is difficult to distinguish this.  The lower square wave type step is the GPIO pin on channel 2, and the top curved step response is the output from the boost converter.  It can be seen to overshoot it’s settling level at the beginning then oscillate for a time before settling down, this oscilloscopes accuracy wasn’t the best, using a longer time base did not show any extra detail on the oscillations.

If the step response was of a first order, a calculation based on the reaction curve could be performed.  However the step response from the boost circuit is of a second order, and has an under-damped nature.  In order to explore this calculation further, requires another tutorial altogether, however further reading on this can be found here.

The step response of a similar system under the control of a PID controller can also be viewed.  This can be achieved by using a similar set up, the external pin is used again to trigger an oscilloscope capture.  That same GPIO pin is also used to switch a mosfet, which places an additional load in parallel with the output of the boost converter.  The PID algorithm will then regulate the output voltage to ensure it meets the set point with the new load, and the step response can then be captured.

Testing and Tuning

The system was set up and a basic tuning approach was used, the image below shows the system on the test bench.

PID Tutorial C code Example using a Stellaris LM3S6965

The image shows the following pieces of equipment:

  • Hewlett Packard multimeter connected to the output, monitoring the output voltage
  • Bench power supply, supplying 5V to the circuit
  • Oscilloscope, used to monitor the PWM duty cycle
  • 0-100Ω bench potentiometer
  • Boost converter PCB, LM3S6965 development board and a laptop to tweak the code

With everything connected the PID algorithm was set up, but with only the proportional part in operation.  The set point was set to 353 as mentioned previously, which produced close to 9V give or take 10-15mV.  The load was fixed and set to 100Ω.  Initially the proportional gain constant Kp was set very low around 0.001, this was too low so it was increased over a few steps until 0.01.  At this point the output voltage was observed to be approximately 7.5V, and the duty cycle waveform was observed to have a small amount of jitter, as the duty cycle fluctuated +/- 0.5%.  The Kp value was again increased, until the output voltage read approximately 8V, the duty cycle was again observed and found to be fluctuating by a greater amount, by approximately +/-5%.  The increase in jitter on the PWM duty cycle can be equated to greater oscillations on the output voltage, the multimeter was not suitable for observing these.  It would have been possible to see them on the oscilloscope but this probably would have involved a stop capture then restart method, therefore to make the process quicker the PWM duty cycle was considered ‘good enough’.

At this point the Kp value was backed off, to the previous level of 0.01 so the output voltage was at 7.5V.  This point can be considered close to the offset level mentioned in part 1 of this tutorial, and for ease of reading the image showing the offset level can again be seen below. This image also illustrates again how too larger Kp value can introduce instability in the output.

PID Tutorial C code Example using a Stellaris LM3S6965

Now with this level reached, the integral part of the algorithm was introduced.  All the hardware was untouched, just a simple modification to the algorithm was made.  The initial value chosen for Ki was 0.01.  This was then loaded on to the LM3S6965 and the output voltage on the multimeter was immediately observed to read 9.02V, +/-10mV.  The oscilloscope was also observed to have minor jitter as before of only a few half percent.  The integral value was not tweaked any further, but in most cases tuning the Kp and Ki values would take a greater time and under a wide range of conditions.

With the PI controller working on a basic level, the next test was to see how it performed under different load conditions.  First the bench potentiometer was left at 100Ω and the input current and output voltage were noted, the wiper was then moved to the middle (approximately 50Ω) and again the output voltage and input current were noted.  At 100Ω the output voltage was 9.02V with a current of 180mA, at 50Ω the output voltage was 8.99V with a current of 500mA, both output voltages still showed minor voltage variations in the +/-10mV range.

The next step was to move the potentiometer wiper rapidly between the 100Ω and 50Ω position, then observe the output voltage and duty cycle (not the most scientific test, but goes some way to demonstrating the system).  With this test being performed the duty cycle was observed to rapidly increase and decrease, too quick to observe anything further and a step response would be the best method to use here.  The output voltage was observed to have a minor variations, fluctuating +/-15-20mV

After this test, the derivative constant was introduced and tweaked to find the best settings. The Kd constant was not observed to have a huge affect on the system, unless increased dramatically which produced instability.  This set up is not ideal for testing the derivative term and a more detailed and longer term approach would be best.

The basic test performed seemed to conclude the PI controller was working as per the research carried out.  The system used here updates at a very fast rate, therefore observing the step response at this point would be best practice.  As this system has no critical importance other than to explore PID, it simply wasn’t necessary to tune it to a high degree of accuracy.  I have a number of projects in the works however, which touch on this subject again and I intend to post them when I have time.

Example Code

The link below contains the zip file with the complete C code and an external functions folder, there is a small advert page first via Adfly, which can be skipped and just takes a few seconds, but helps me to pay towards the hosting of the website.

PID LM3S6965 C code

I take great care when writing all the tutorials and articles, ensuring all the code is fully tested to avoid issues for my readers.  All this takes time and a great deal of work, so please support the site by using the Adfly links etc.  If you have found this useful or have any problems implementing, please feel free to leave a comment and I will do my best to help.

Stellaris ADS1118 Tutorial

Stellaris ADS1118 Tutorial

Stellaris ADS1118 tutorial will show how a Stellaris LM3S6965 is interfaced with a ADS1118 16 bit ADC using the SPI bus.

The ADS1118 was chosen as it can be used to interface thermocouples, in this example only the temperature data from the on-die temperature sensor will be read. The thermocouple interfacing will be covered at a later date.  The datasheet for the ADS1118 can be downloaded form here.

ADS1118 Package

The ADC was sourced in ADS1118IDGST package, then a symbol, package and device was constructed in EagleCAD.  Once this was completed a small PCB was milled out, which can be seen below.

Stellaris ADS1118 Tutorial C Code











The SMD decoupling capacitor was placed as close to the IC as possible (milling machine restrictions) to reduce noise, additionally the bottom layer was used as a ground plane.  This PCB layout uses male jumper pins, therefore allowing the ADS1118 to be plugged in and used with other test boards.  For testing a small piece of veroboard was used with a few discrete components, and some female headers so the ADS1118 PCB could be plugged in. This was then connected directly to the Stellaris evaluation board, using the 3.3V line as the main supply for the ADC.  The finished test board can be seen in the below image.

Stellaris ADS1118 Tutorial LM3S6965

The ADS1118 uses the Serial Peripheral Interface (SPI) to send and receive data from a microcontroller, the Stellaris will be the master and the ADS1118 the slave.  To ensure the SPI (known as SSI on the Stellaris) connections were correct, the the datasheet for the ADS1118 was read thoroughly, this was also necessary to familiarise oneself with ADS1118 control registers and SPI mode of operation.  This is not a tutorial on SPI so there are some assumptions made, that you the reader knows some basics regarding the SPI protocol.  Some useful links for SPI reference can be found here and here

The image below shows the ADS1118IDGST pinout, for this example pins 1 to 3 and 8 to 10 were used.

Stellaris ADS1118 Tutorial LM3S6965











These were connecting to the Stellaris as follows:

ADS1118 SCLK —– Stellaris SSICLK

ADS1118 CS —– Stellaris SFSS

ADS1118 DIN —– Stellaris SSITX (MOSI)

ADS1118 DOUT —– Stellaris SSITX (MISO)

*These pins on the Stellaris are generally used for interfacing with the on board OLED display, in this example the OLED is not used.  There is a second SPI peripheral on the LM3S6965 evaluation board.

ADS1118 SPI Operation

From the ADC datasheet we can find some useful information regarding the transmission cycle, and what information we need to send the ADS1118 to configure the control registers.  The ADS1118 has 2 modes of operation: 32 bit data transmission cycle and a shorter 16 bit data transmission cycle, the former also allows the SS line to be tied to Gnd. The image below shows the 16 bit data transmission cycle, which is the method used in the code for this tutorial.

Stellaris ADS1118 Tutorial LM3S6965

The SS line is controlled by the master, when this goes low the the master sends a 16 bit word to the ADS1118 on the MOSI line, this word contains the control register configuration settings.  As the SPI interface allows data to be transmitted and received simultaneously, the ADS1118 sends a 16 bit word back on the MISO line.  The master then takes the SS line high, and another 16 bit word transfer can take place as soon as this is taken low again.

The control register settings for the ADS1118 are used to configure various parameters i.e. Temperature Sensor Mode, Pull-Up resistors, Programmable Gain Amplifier Configuration etc.  A full list of these parameters can be found on pages 21 and 22 of the datasheet.  For this example we will be configuring the ADS1118 to function in a basic temperature sensing mode, using the internal temperature sensor.  To configure the control register in this way the 16 bit word looks like this in binary 00000000 00010010 or 0x12 in hexadecimal.  Bit 4 is set to 1 which places the device in Temperature Sensor Mode.  Bit 1 and 2 have a fixed setting if the control register data is classed as ‘Valid data’, this is 01 anything other than this will mean the 16 bit word is invalid, and it will therefore not be written to the control register.

Information regarding the clock polarity (CPOL) and the clock phase (CPHA) can be found in Figure 1 on page 6 of the datasheet.

C Code

Now the code used in this project is loosely based on some Stellaris example code, which is bundled with Stellarisware, however this code is not in the examples for the LM3S6965 board.  As with previous posts I will list some of the code in the post, and the complete C file can be downloaded at the end of the post.

All the SSI setup code has been bundled into one function called Setup_SSI()

First of all the clock is setup which is part of any hardware setup and required not just for the SSI.  Next the SSI0 module is enabled, followed by GPIO port A being enabled which the SSI0 module uses.

After the port is enabled the next function configures the pin muxing feature for port A, which relates to the pin_map.h header file in the Stellarisware.  Not all stellaris devices support pin muxing, so check the datasheet for your device.  The GPIO pins are then configured to be used by the SSI module using the function GPIOPinTypeSSI(), this takes 2 parameters, the port base address and then the individual pins on that port.

Then SSIConfigSetExpClk() is used to configure the SSIO peripheral, with 6 parameters:

The first parameter specifies the module base address, SSI0 is used here.  The second parameter specifies the rate of the clock supplied to the SSI, system clock is used in this case.  The third parameter specifies the SPI mode used (there are 4 variations), in this case Mode 1 is used.  The forth parameter specifies if the Stellaris will function as a master or a slave device.  The fifth parameter specifies the clock rate, in this case the system clock is divided by 8 so 1MHz, and finally the sixth specifies the number of bits transferred per frame, 16 bits are used in the example.

As mentioned the SPI protocol has 4 transfer modes, this is dependent on the clock polarity (CPOL) and the clock phase (CPHA).  The links provided earlier in this post will prove useful in understanding the mode of choice, as well as reading the datasheet for the slave device to ascertain which mode of operation it uses.

The final function call is to enable the SSI0 module.

Now that the SSI0 module has been setup, the functions to send and receive data can be used.  In order to store the data to be sent and received, the code example uses an unsigned long array for the transmitted and received data.  Also a further unsigned long is used as a counter variable making the process easier, if further data words were being sent.  This format is overkill for this example, as only one 16 bit word is required to be transmitted and received.  However in this example two 16 bit words will be sent, one containing the correct control register data, and another with invalid control register data.  The number of data arrays is determined by a #define NUM_SSI_DATA 2.

Inside the main function contained within a while loop, the first function is called as follows

This functions gets the received data from the receive FIFO of the SSI0 module (the first parameter), and places the data into the location specified by the second parameter, which is a pointer to the storage location.  If there is no data the function returns zero.

After this the data arrays for transmit and receive are initialized, here the values previously discussed for the control register are loaded.

Next a for loop is used to control the flow of data being transmitted to the slave.

The SSIDataPut() function call takes 2 parameters, the base address of the SSI module and the data to be transmitted over the SSI interface.  This function uses a blocking send function, it places data into the transmit FIFO of the SSI module.  If there is no space available in the transmit FIFO, it waits until there is space before returning.  This then ensures all the data is sent.

The SSIBusy() function simply ensures that the program waits while the SSI0 module is busy. Lastly the SS line is taken high to indicate the end of the 16 bit word transfer.

The next piece of code uses another for loop to control the flow of data being received from the slave.

The SSIDataGet() function call takes 2 parameters, the base address of the SSI module and the data to be received over the SSI interface.  This function uses a blocking get function, it will wait until there is data in the receive FIFO of the SSI module.  The data is then placed into the function location specified by the second parameter pointer address.  If there is no data the function waits until data is received before returning.

The SSIBusy() function is used again here as with the previous for loop.

Before we look at the rest of the code, which is used to calculate the temperature data from the ADS1118, lets firstly look at the SPI timing diagram produced by the code.

Stellaris ADS1118 Tutorial LM3S6965

The timing diagram was captured with a USB logic analyzer, which also has a function to decode the SPI bus protocol.  As can be seen in the waveform the SS line drops low to allow data to be sent, and remains low while data in being trasnmitted and receieved.  The serial clock starts shortly after the SS line drops low, and data is transmitted from master to slave on the MOSI line, and from slave to master on the MISO line.  The SS line can be seen to go high between each 16 bit word transfer.

The decoded data shown at the top, is the same as displayed on the MOSI and MISO lines below, it just saves counting the 0’s and 1’s and then calculating the hexadecimal value. From this it is easy to see the transmitted data values match, the values placed in the transmit FIFO by the code.  Also it can be seen that the second invalid control register data just instigates a transmit and receive sequence.  The data coming back from the slave are temperature values, which don’t mean a great deal in their present form, so some additional code is required to interpret and calculate the current temperature.

We know the temperature data is being sent in a 16 bit word, reading the datasheet especially the chapter titled ‘Temperature Sensor’ provides all the necessary information. Only the upper most 14 bits are valid temperature data, so the last 2 LSB can be discarded. The data is also sent in 2’s compliment format, this example does not go into negative values for the temperature, but this is good to know dependent on the temperature range being measured. Also the datasheet provides a temperature constant of 0.03125 degrees C, which equals 1 bit of the 14 bit number, so a simple multiplication is required.

3 variables are used to calculate the temperature sensor reading.

Firstly the raw 16 bit word is assigned to the unsigned int Raw_Value.  Looking back at the SPI timing diagram this value would be 0x0BF8 or 0000101111111000 in binary. We are however only interested in the 14 MSB, shown in bold.

This value is turned from a 16 bit word to a 14 bit word by shifting to the right by 2 places. After the binary value has been shifted it reads 00001011111110 or 766 in decimal.

The next step is to multiply the 14 bit raw value with the temperature constant for the ADS1118 temperature sensor.  Therefore 766 multiplied by 0.03125 equals 23.9375 degrees C.

Using Code Composer Studio v5.5 the next screen shot shows the data captured in the debug mode.  A breakpoint was set and adjusted to simply update the view, therefore the variables could be seen to change in real time.  The Raw_Value 767 is 3068 divided by 4 which is basically the operation the right shift is performs.

Stellaris ADS1118 Tutorial LM3S6965

Example Code

The link below contains the zip file with the complete C code, there is a small advert page first via Adfly, which can be skipped and just takes a few seconds, but helps me to pay towards the hosting of the website.

Stellaris ADS1118 SPI C code

I take great care when writing all the tutorials and articles, ensuring all the code is fully tested to avoid issues for my readers.  All this takes time and a great deal of work, so please support the site by using the Adfly links etc.  If you have found this useful or have any problems implementing, please feel free to leave a comment and I will do my best to help.

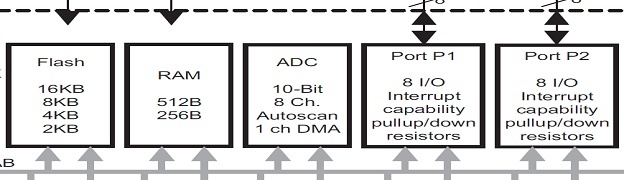

MSP430G ADC tutorial featured

MSP430 ADC Tutorial

In this MSP430 ADC tutorial the MSP430G2253 will be used as an example.  Texas Instruments ships the MSP430G2253 microprocessor with the latest Launchpad, the datasheet for the MSP430G2253 can be downloaded here

The MSP430G series devices are supplied in a number of packages with different specification and peripherals, there are 2 types of ADC, ADC10 and ADC12.  The ADC10 is a 10bit analog to digital conversion and the ADC12 is a 12bit analog to digital conversion.  The MSP430G2253 only incorporates the ADC10, apart from having greater resolution the ADC12 does not differ that much from the ADC10. Suggested reading on the main differences between the 2 types of ADC is the MSP430x2xx Family User’s Guide, which at the time of writing is release SLAU144J here

Before reading further if you are having trouble understanding how the registers work, and how the C code updates the individual register settings?  It would be worth reading my MSP430 Programming Tutorial, Part 1 covers the basics and Part 2 gives clear examples.  You can find them here Part 1 and Part 2.

ADC10 Resolution

Firstly lets clarify what 10bit resolution is and how this maybe relevant to the accuracy of a project.  10bit means 2 to the power of 10, or 2x2x2x2x2x2x2x2x2x2x2 which equals 1024, the 1024 is the number of sample steps taken over a given range (in the case of microcontrollers it’s actually 0 to 1023).

So now we understand the term regarding bit size, we need to find the range.  The range is defined as what voltage range the ADC accepts, to find this we need to consult the datasheet for the MSP430G2253, an extracted image from the datasheet can be seen below.

MSP430 ADC Tutorial C Code Examples

So from this the voltage range for the ADC can be determined as 0-3 volts.  So now that we have the range and the number of sample steps, we can now determine the resolution of the ADC with some simple maths.  The ADC12 has also been shown to help illustrate the step size changes and how this affects accuracy.

MSP430 ADC Tutorial C Code Examples

So using an example we can see what this would mean in real terms, if 1.5V was fed into the ADC input.

MSP430 ADC Tutorial C Code Examples

Now the value of 512 or 2048 is the value that would be stored as a variable by the ADC, this can actually be seen in Code Composer Studio and will be demonstrated later on in this tutorial.

ADC10 Registers

The ADC10 module on the MSP430G devices is configured by the user through software. There are various registers used to change the way the ADC10 operates dependent on the application requirements.

MSP430 ADC Tutorial C Code Examples

ADC10 Analog Input Enable Register 0

This allows the user to enable the specific GPIO pin/s for analog input.  The command used for this register looks something like this ADC10AE0 |= 0x02;  (0x02 is selecting the ADC A1 or port P1.1).

ADC10 Analog Input Enable Register 1

This is not available on the MSP430G2253 device.

ADC10 Control Register 0

Control register 0 has various parameters that can be set which are listed below, the MSP430 Family Guide SLAU144J has a full list of all these parameters with more in depth descriptions.    The command used for this register looks something like this ADC10CTL0 = SREF_1 + ADC10SHT_2 + REFON + ADC10ON + ADC10IE;

SREFx – Select Reference.  There are varies parameter options that can be set for select reference.

ADC10SHTx – Sample and Hold Time.  This adjust how many clock cycles the sampling period will be.

ADC10SR – Sampling Rate.  Adjusts the sampling rate between ~200ksps or ~50ksps

REFOUT – Reference Output.  Reference voltage output to GPIO pin with Vref capability

REFBURST – Reference Burst.  Disables the internal reference voltage automatically when the ADC10 is not converting.

MSC – Multiple Sample Conversion.  Allows multiple samples to be taken automatically.

REF2_5V – Reference Generator Voltage. selectable between 1.5V and 2.5V

REFON – Reference Generator On.  Turns on the internal reference voltage.

ADC10ON – ADC10 On.  Turns on the ADC10

ADC10IE – Interrupt Enable.  Enables interrupts for the ADC10

ADC10IFG – Interrupt Flag.  Enables Interrupt flag for the ADC10

ENC – Enable Conversion.  Enables the conversion and can be used to stop a conversion by resetting ENC.

ADC10SC – Start Conversion.  Starts the conversion on the ADC10

ADC10 Control Register 1

Control register 1 has various parameters that can be set which are listed below, the MSP430 Family Guide SLAU144J has a full list of all these parameters with more in depth descriptions.    The command used for this register looks something like this ADC10CTL1 = INCH_10 + ADC10DIV_3 + CONSEQ_2;

INCHx – Input Channel Select.  This selects the GPIO pin/s used for the ADC input.

SHSx – Sample and Hold Source Select.

ADC10DF – Data Format.  Straight binary or 2s compliment.

ISSH – Invert Signal Sample and Hold.

ADC10DIVx – Clock Divider.  Allows the chosen clock source used for the ADC to be divided down.

ADC10SSELx – Clock Source Select.  Allows the user to select which of the MSP430 clocks to be used for the ADC.

CONSEQx – Conversion Sequence Mode.  Allows difference conversion sequences on single or multiple channels.

ADC10BUSY – Busy.  Indicates an active sample or conversion operation.

ADC10 Memory

This is the conversion memory register.  The command used for this register looks something like this ADC_data = ADC10MEM;

ADC10 Data Transfer Control Register 0

Data transfer control (DTC) register 0, has various parameters for the control of the data transfer. The DTC automatically transfers conversion results from ADC10MEM to other on chip memory locations.  The command used for this register looks something like this ADC10DTC0 |= ADC10TB + ADC10CT;

ADC10 Data Transfer Control Register 1

Data transfer control register 1, defines the number of transfer in each block.  The command used for this register looks something like this ADC10DTC1 = 0x20;

ADC10 Data Transfer Start Address

ADC10SAx – Start Address.  The command used for this register looks something like this ADC10SA = 0x0200;

Example 1

The code pasted below will perform a  single read from GPIO P1.3 and then assigns the value of ADC10MEM to a variable called ADC_value.

Example 1 Code

The link below contains the zip file with the full example 1 C code, there is a small advert page first via Adfly, which can be skipped and just takes a few seconds, but helps me to pay towards the hosting of the website.

Example 1 Code

I take great care when writing all the tutorials and articles, ensuring all the code is fully tested to avoid issues for my readers.  All this takes time and a great deal of work, so please support the site by using the Adfly links etc.  If you have found this useful or have any problems implementing, please feel free to leave a comment and I will do my best to help.

Example 2

The code pasted below will perform a repeated read from GPIO P1.0 and then using the DTC, it will copy the value into an array.  The DTC automatically increments the address of the array.  The integer array containing the value is then added together and divided by 10 to give an average value, which is assigned to the variable avg_adc.

The image below shows a screen capture from the debug mode in code composer studio. By using a breakpoint and watching the expressions adc[10] and avg_adc, the values can be viewed changing (almost live) as the input to the ADC changes.  A light dependent resistor circuit was used as input to the ADC in this case.

MSP430 Launchpad ADC Tutorial

Example 2 Code

The link below contains the zip file with the full example 2 C code, there is a small advert page first via Adfly, which can be skipped and just takes a few seconds, but helps me to pay towards the hosting of the website.

Example 2 Code

I take great care when writing all the tutorials and articles, ensuring all the code is fully tested to avoid issues for my readers.  All this takes time and a great deal of work, so please support the site by using the Adfly links etc.  If you have found this useful or have any problems implementing, please feel free to leave a comment and I will do my best to help.

Example 3

The 3rd example reads 3 separate GPIO pins repeatedly, these pins are p1.1, p1.2 and p1.3. The program was originally written to be used with an analog 3 axis accelerometer, so some of the variables are still named in this manner.  Most of the comments within the code have been removed to reduce the size of the snippet, however the fully commented code can be downloaded below.

Example 3 Code

The link below contains the zip file with the full example 3 C code, there is a small advert page first via Adfly, which can be skipped and just takes a few seconds, but helps me to pay towards the hosting of the website.

Example 3 Code

I take great care when writing all the tutorials and articles, ensuring all the code is fully tested to avoid issues for my readers.  All this takes time and a great deal of work, so please support the site by using the Adfly links etc.  If you have found this useful or have any problems implementing, please feel free to leave a comment and I will do my best to help.
